Konfigurasi PC
PC 1
IP Address 172.16.3.2
Subnet Mask 255.255.255.0
Gateway 172.16.3.1
Gateway 172.16.3.1
PC 2
IP Address 172.16.1.2
Subnet Mask 255.255.255.0
Gateway 172.16.1.1
Gateway 172.16.1.1
PC 3
IP Address 192.168.2.2
Subnet Mask 255.255.255.0
Gateway 192.168.2.1
Konfigurasi Router
R1(config)#int fa0/0
R1(config-if)#ip add 172.16.3.1 255.255.255.0
R1(config-if)#no shut
R1(config-if)#exit
R1(config)#int ser2/0
R1(config-if)#ip add 172.16.2.1 255.255.255.0
R1(config-if)#no shut
R1(config-if)#exit
R2(config)#int fa0/0
R2(config-if)#ip add 172.16.1.1 255.255.255.0
R2(config-if)#no shut
R2(config-if)#exit
R2(config)#int ser2/0
R2(config-if)#ip add 172.16.2.2 255.255.255.0
R2(config-if)#clock
rate 64000R1(config-if)#ip add 172.16.3.1 255.255.255.0
R1(config-if)#no shut
R1(config-if)#exit
R1(config)#int ser2/0
R1(config-if)#ip add 172.16.2.1 255.255.255.0
R1(config-if)#no shut
R1(config-if)#exit
R2(config)#int fa0/0
R2(config-if)#ip add 172.16.1.1 255.255.255.0
R2(config-if)#no shut
R2(config-if)#exit
R2(config)#int ser2/0
R2(config-if)#ip add 172.16.2.2 255.255.255.0
R2(config-if)#no shut
R2(config-if)#exit
R2(config)#int ser3/0
R2(config-if)#ip add 192.168.1.2 255.255.255.0
R2(config-if)#clock rate 64000
R2(config-if)#no shut
R2(config-if)#exit
R3(config)#int fa0/0
R3 (config-if)#ip add 192.168.2.1 255.255.255.0
R3 (config-if)#no shut
R3 (config-if)#exit
R3 (config)#int ser2/0
R3 (config-if)#ip add 192.168.1.1 255.255.255.0
R3 (config-if)#no shut
IP Route
R1(config)#ip route 172.16.1.0 255.255.255.0 172.16.2.2
R1(config)#ip route 192.168.0.0 255.255.252.0 172.16.2.2
R1(config)#end
R2(config)#ip route 172.16.3.0 255.255.255.0 172.16.2.1
R2(config)#ip route 192.168.2.0 255.255.255.0 192.168.1.1
R2(config)#end
R3 (config)#ip route 172.16.0.0 255.255.252.0 192.168.1.2
R3 (config)#end
MEMASUKKAN PERINTAH-PERINTAH:
- Perintah Ping
PC 1

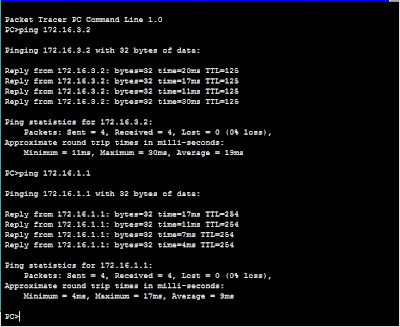

PC 3
- Perintah traceroute
Router 1
R1#traceroute 172.16.1.0
Type escape sequence to abort.
Tracing the route to 172.16.1.0
1 172.16.2.2 6 msec
6 msec 3 msec
R1#traceroute 172.16.2.0
Type escape sequence to abort.
Tracing the route to 172.16.2.0
1 172.16.2.2 6 msec
1 msec 4 msec
R1#traceroute 192.168.2.0
Type escape sequence to abort.
Tracing the route to 192.168.2.0
1 172.16.2.2 5 msec
5 msec 5 msec
2 192.168.1.1 8 msec
10 msec 6 msec
Router 2
R2#traceroute 172.16.3.0
Type escape sequence to abort.
Tracing the route to 172.16.3.0
1 172.16.2.1 7 msec
2 msec 5 msec
R2#traceroute 192.168.2.0
Type escape sequence to abort.
Tracing the route to 192.168.2.0
1 192.168.1.1 2 msec
4 msec 4 msec
Router 3
R3#traceroute 172.16.3.0
Type escape sequence to abort.
Tracing the route to 172.16.3.0
1 192.168.1.2 7 msec
3 msec 3 msec
2 172.16.2.1 5 msec
6 msec 5 msec
R3#traceroute 172.16.1.0
Type escape sequence to abort.
Tracing the route to 172.16.1.0
1 192.168.1.2 6 msec
6 msec 3 msec
R3#
- Perintah Show IP Route
Router 1
R1#sh ip route
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B -
BGP
D - EIGRP, EX - EIGRP
external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external
type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type
1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS
level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default,
U - per-user static route, o - ODR
P - periodic downloaded
static route
Gateway of last resort is not set
172.16.0.0/24 is
subnetted, 3 subnets
S 172.16.1.0 [1/0] via
172.16.2.2
C 172.16.2.0 is directly
connected, Serial2/0
C 172.16.3.0 is directly
connected, FastEthernet0/0
S 192.168.0.0/22 [1/0] via
172.16.2.2
Router 2
R2#sh ip route
Codes: C -
connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O -
OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 -
OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF
external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 -
IS-IS level-2, ia - IS-IS inter area
* - candidate default, U - per-user
static route, o - ODR
P - periodic downloaded static route
Gateway of last
resort is not set
172.16.0.0/24 is subnetted, 3 subnets
C 172.16.1.0 is directly connected,
FastEthernet0/0
C 172.16.2.0 is directly connected,
Serial2/0
S 172.16.3.0 [1/0] via 172.16.2.1
C 192.168.1.0/24 is directly connected,
Serial3/0
S 192.168.2.0/24 [1/0] via 192.168.1.1
Router 3
R3#sh
ip route
Codes: C - connected, S - static, I - IGRP,
R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
Gateway of last resort is not set
172.16.0.0/22 is subnetted, 1 subnets
S
172.16.0.0 [1/0] via 192.168.1.2
C
192.168.1.0/24 is directly connected, Serial2/0
C
192.168.2.0/24 is directly connected, FastEthernet0/0
- Perintah Show ip interface brief
R1#sh ip
interface brief
Interface IP-Address OK? Method Status Protocol
FastEthernet0/0 172.16.3.1 YES manual up up
FastEthernet1/0 unassigned YES unset
administratively down down
Serial2/0 172.16.2.1 YES manual up up
Serial3/0 unassigned YES unset
administratively down down
FastEthernet4/0 unassigned YES unset
administratively down down
FastEthernet5/0 unassigned YES unset
administratively down down
Router 2
R2#sh ip
interface brief
Interface IP-Address OK? Method Status Protocol
FastEthernet0/0 172.16.1.1 YES manual up up
FastEthernet1/0 unassigned YES unset
administratively down down
Serial2/0 172.16.2.2 YES manual up up
Serial3/0 192.168.1.2 YES manual up up
FastEthernet4/0 unassigned YES unset
administratively down down
FastEthernet5/0 unassigned YES unset
administratively down down
Router 3
R3#sh ip
interface brief
Interface IP-Address OK? Method Status Protocol
FastEthernet0/0 192.168.2.1 YES manual up up
FastEthernet1/0 unassigned YES unset
administratively down down
Serial2/0 192.168.1.1 YES manual up up
Serial3/0 unassigned YES unset
administratively down down
FastEthernet4/0 unassigned YES unset
administratively down down
FastEthernet5/0 unassigned YES unset
administratively down down
- Perintah Show cdp neighbors detail
Router 1
R1#sh cdp
neighbors detail
Device ID:
Switch
Entry
address(es):
Platform: cisco
2950, Capabilities: Switch
Interface:
FastEthernet0/0, Port ID (outgoing port): FastEthernet0/2
Holdtime: 142
Version :
Cisco
Internetwork Operating System Software
IOS (tm) C2950
Software (C2950-I6Q4L2-M), Version 12.1(22)EA4, RELEASE SOFTWARE(fc1)
Copyright (c)
1986-2005 by cisco Systems, Inc.
Compiled Wed
18-May-05 22:31 by jharirba
advertisement
version: 2
Duplex: full
---------------------------
Device ID: R2
Entry
address(es):
IP address : 172.16.2.2
Platform: cisco
PT1000, Capabilities: Router
Interface:
Serial2/0, Port ID (outgoing port): Serial2/0
Holdtime: 142
Version :
Cisco
Internetwork Operating System Software
IOS (tm) PT1000
Software (PT1000-I-M), Version 12.2(28), RELEASE SOFTWARE (fc5)
Technical
Support: http://www.cisco.com/techsupport
Copyright (c)
1986-2005 by cisco Systems, Inc.
Compiled Wed
27-Apr-04 19:01 by miwang
advertisement
version: 2
Duplex: full
Router 2
R2#sh cdp
neighbors detail
Device ID:
Switch
Entry
address(es):
Platform: cisco
2950, Capabilities: Switch
Interface:
FastEthernet0/0, Port ID (outgoing port): FastEthernet0/2
Holdtime: 143
Version :
Cisco
Internetwork Operating System Software
IOS (tm) C2950
Software (C2950-I6Q4L2-M), Version 12.1(22)EA4, RELEASE SOFTWARE(fc1)
Copyright (c)
1986-2005 by cisco Systems, Inc.
Compiled Wed
18-May-05 22:31 by jharirba
advertisement
version: 2
Duplex: full
---------------------------
Device ID: R1
Entry
address(es):
IP address : 172.16.2.1
Platform: cisco
PT1000, Capabilities: Router
Interface:
Serial2/0, Port ID (outgoing port): Serial2/0
Holdtime: 152
Version :
Cisco
Internetwork Operating System Software
IOS (tm) PT1000
Software (PT1000-I-M), Version 12.2(28), RELEASE SOFTWARE (fc5)
Technical
Support: http://www.cisco.com/techsupport
Copyright (c)
1986-2005 by cisco Systems, Inc.
Compiled Wed
27-Apr-04 19:01 by miwang
advertisement
version: 2
Duplex: full
---------------------------
Device ID: R3
Entry
address(es):
IP address : 192.168.1.1
Platform: cisco
PT1000, Capabilities: Router
Interface:
Serial3/0, Port ID (outgoing port): Serial2/0
Holdtime: 151
Version :
Cisco
Internetwork Operating System Software
IOS (tm) PT1000
Software (PT1000-I-M), Version 12.2(28), RELEASE SOFTWARE (fc5)
Technical
Support: http://www.cisco.com/techsupport
Copyright (c)
1986-2005 by cisco Systems, Inc.
Compiled Wed
27-Apr-04 19:01 by miwang
advertisement
version: 2
Duplex: full
Router 3
R3#sh cdp
neighbors detail
Device ID:
Switch
Entry address(es):
Platform: cisco
2950, Capabilities: Switch
Interface:
FastEthernet0/0, Port ID (outgoing port): FastEthernet0/1
Holdtime: 143
Version :
Cisco
Internetwork Operating System Software
IOS (tm) C2950
Software (C2950-I6Q4L2-M), Version 12.1(22)EA4, RELEASE SOFTWARE(fc1)
Copyright (c)
1986-2005 by cisco Systems, Inc.
Compiled Wed
18-May-05 22:31 by jharirba
advertisement
version: 2
Duplex: full
---------------------------
Device ID: R2
Entry
address(es):
IP address : 192.168.1.2
Platform: cisco
PT1000, Capabilities: Router
Interface:
Serial2/0, Port ID (outgoing port): Serial3/0
Holdtime: 143
Version :
Cisco
Internetwork Operating System Software
IOS (tm) PT1000
Software (PT1000-I-M), Version 12.2(28), RELEASE SOFTWARE (fc5)
Technical
Support: http://www.cisco.com/techsupport
Copyright (c)
1986-2005 by cisco Systems, Inc.
Compiled Wed
27-Apr-04 19:01 by miwang
advertisement
version: 2
Duplex: full
